6-968974-1
Manufacturer:
TE Connectivity
Mfr.Part #:
6-968974-1
Datasheet:
Description:

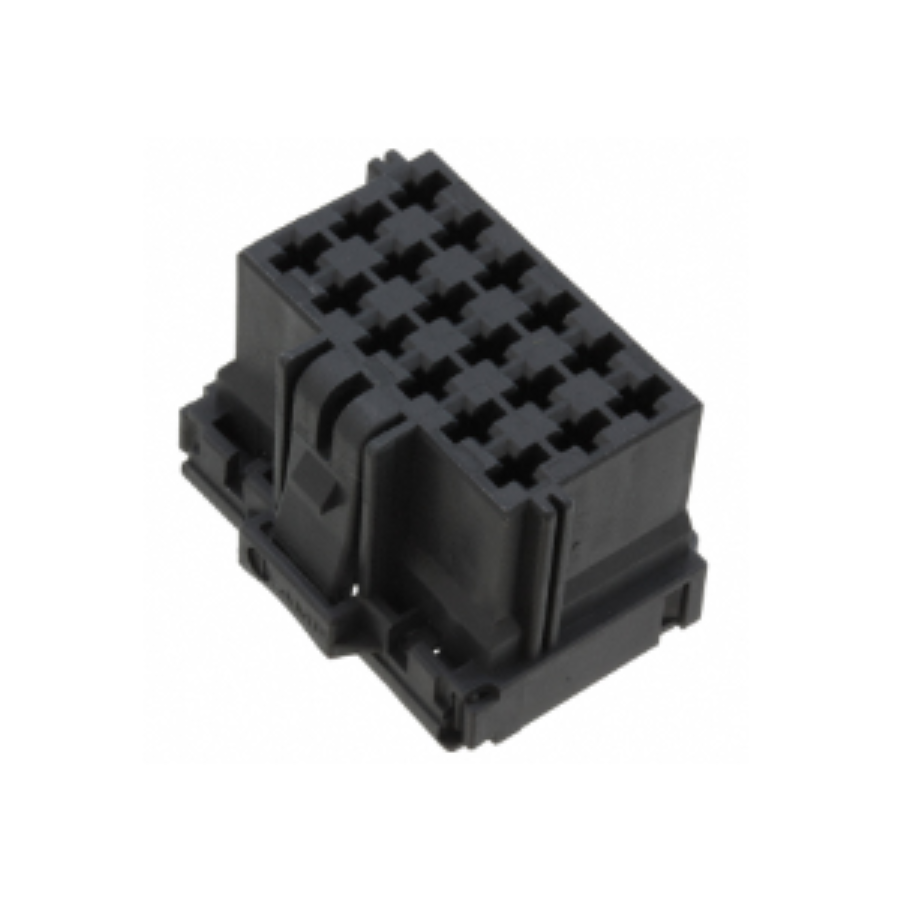

Headers and Wire Housings Cable, Free Hanging Receptacle Number of Positions:18 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 36 mm |
| Width | 35.9918 mm |
| Termination | Crimp |
| Max Operating Temperature | 248 °C |
| Min Operating Temperature | -40 °C |
| Height | 24 mm |
| Packaging | Bulk |
| Voltage Rating | 28 V |
| Depth | 24 mm |
| RoHS | Compliant |
| Ratings | IP67 |
| Contact Plating | Tin |
| Pitch | 5 mm |
| Current Rating | 24 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Blue |
| Gender | Female |
| Number of Contacts | 18 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 13 AWG |
| Number of Positions | 18 |
| Number of Rows | 3 |
| Row Spacing | 5.5118 mm |
| Insulation Material | PBT |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | Blue |
| Mating Tab Width | 2.794 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | No |
Stock: 549
Distributors
pcbx
pcbxUnit Price$1.09517
Ext.Price$1.09517
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.09517 | $1.09517 |
| 10 | $0.93273 | $9.32730 |
| 25 | $0.87630 | $21.90750 |
| 50 | $0.83270 | $41.63500 |
| 100 | $0.79509 | $79.50900 |
| 300 | $0.75967 | $227.90100 |
| 500 | $0.72583 | $362.91500 |
| 1000 | $0.63180 | $631.80000 |
